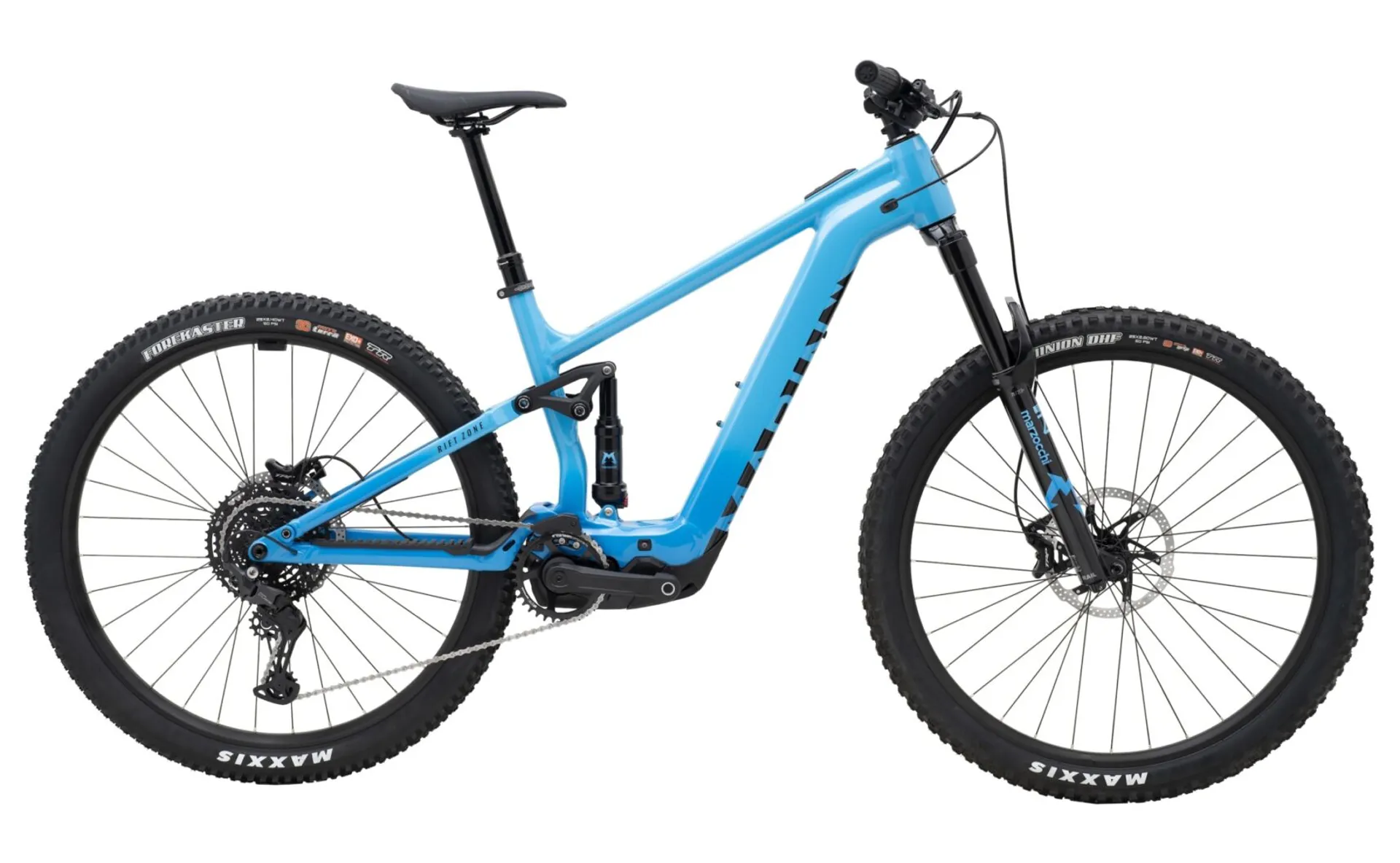

Rift Zone EL 1 BLUE NAVY

Season:2025

Brand:Marin

Code:7375930BLUNVY

Marins all-new rift zone el (electric light) trail emtbs take everything you love about the rift zone formula and repurposes it into bikes that share the capability as the full-powered versions, but in lighter-weight packages.Made possible in part by boschs new lightweight performance line sx drive unit and compacttube internal battery, the rift zone el models deliver a decidedly playful ride, with a power delivery so natural you might forget its an ebike. All of the benefits without the bulk, the rift zone el is the perfect platform for those who dont require the full range and power output of more traditional emtbs

Specifications

  • Frame

    All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

  • Front Suspension

    Marzocchi Bomber Z1 150mm Travel, 29, 110x15 Kabolt Thru Axle, 44mm Offset

  • Rear Suspension

    Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount

  • Rim

    Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

  • Hub Rear

    Shimano FHTC500, 148x12 Thru Axle, Microspline, 32H, Centerlock

  • Hub Front

    Shimano HB-TC500, 110x10 Thru Axle, 32H, Centerlock

  • Spokes

    14g Black Stainless Steel

  • Tires

    Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+

  • Derailleur Rear

    Shimano CUES RD-U6000 GS, 10-Speed

  • Derailleur Front

    -

  • Shift Lever

    Shimano CUES SL-U6000-10R, 10-Speed

  • Crankset

    e*thirteen e*spec Plus, 160mm Length, 34T

  • Motor

    Bosch Performance Line SX, 600W, 55Nm torque

  • Chain

    Shimano LG500

  • Cassette

    Shimano CS-LG300-10, 11-48T

  • Brakes Front

    TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

  • Brakes Rear

    TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

  • Brake Levers

    TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible

  • Handlebar

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • Stem

    Marin 3D Forged Alloy, 35mm

  • Grips

    Marin Grizzly Lock On

  • Headset

    FSA Custom, Adjustable HTA Design

  • Seatpost

    TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm

  • Saddle

    Marin Speed Concept

  • Pedals

    Marin MTB Plastic

  • Battery

    Bosch 400 Wh Internal (Optional PowerMore 250 wh external battery using PowerMore 150mm cable EB12.120.036)

  • Display

    Bosch BRC3100 Systems Controller

  • Switch

    Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

  • Extras

    e*thirteen e*Spec Chainguide

  • Extras

    Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger

  • Range, Charging Time

    15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions)

Specifications, pricing, and availability are subject to change without notice.

Geometry

Geometry configuration

  • Front/Rear Wheels:29"/29"
  • BBand Chainstay:n/a
  • Headtube Angle:0° Headset Cup
Rift Zone EL1 geometry diagram
SMLXL
Stack618.74632.33641.4645.93
Reach430460490520
Headtube Angle65°65°65°65°
Headtube Length100115125130
Seattube Angle77°77°77°77°
Seattube Length400420430460
Toptube Effective572.85605.99638.08669.12
BB Height342342342342
BB Drop36363636
Chainstay440440440440
Wheelbase1188.811225.151259.381291.49
Standover Height674.75687.74691.98699.2
Fork Offset44444444
Seatpost diameter34.934.934.934.9
Handlebar width780780780780
Stem length35353535
Crank length160160160160

All lengths in millimeters

Technology

Marin Rift Zone XR AXS profile, on a trail.

FRAME

Rift Zone EL models are built around our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes and full internal cable routing, giving riders the highest-end alloy frame that Marin offers. 29” wheels roll at both ends of all three models in the Rift Zone EL collection.

Marin Rift Zone XR AXS frame detail.

MULTITRAC SUSPENSION

It wouldn’t be a Rifty without our much-heralded MultiTrac suspension that pairs an ideal leverage curve with a custom shock tune. The resulting 140mm of travel balances pedal efficiency and the ability to float over rocks and roots while delivering confidence-inspiring chassis control.

Marin Rift Zone XR AXS headtube detail.

ADJUSTABLE HEADTUBE ANGLE

The headtube angles on the Rift Zone EL models can be fine-tuned via the proprietary headset cups and inserts, allowing for approximately +/- 0.50° of adjustability beyond the stock 65° headtube angle to best suit your riding style and local trails.

Bosch Performance Line SX drive unit detail.

DRIVE UNIT

Packing 55Nm torque and up to 600W of power in a lightweight 4.4lbs/2kg drive unit, Bosch’s Performance Line SX drive unit delivers a silent riding experience with no motor noise and no drag at speed, for a very natural feeling power delivery.

Bosch CompactTube battery.

BATTERY

The Bosch CompactTube 400Wh battery delivers from 15-55 miles (25-90km) of range (based on rider weight, terrain, climate and level of assist used) and fully charges in about six hours using the included 2A charger. It’s securely mounted in the downtube and is removable using common tools.

Bosch ebike system controller on the top tube of a Marin Rift Zone EL AXS.

CONTROLLERS

Bosch’s system controller is conveniently located on the top tube and includes the power switch and an LED-based mode/battery level indicator.

The wireless mini remote is within reach of the rider’s left thumb and controls the power assist mode, allowing the rider to make quick adjustments on the fly.

Marin Rift Zone EL XR chainstay guard detail.

PROTECTION

Made from a 30% fiberglass-infused nylon, similar to what is used on safety and football helmets, the moto-inspired integrated downtube guard helps deflect errant rocks, logs, or anything else riders may encounter on the trail. This guard also includes drain ports to let moisture flow from the frame.

Chainstays and seatstays are protected with durable rubber guards that minimize noise and protect paint finishes. Cable ports are of an all-new design and keep the frame innards sealed. These ports use rubber membranes punctured during initial assembly and seal around the housing or hose once inserted.

Bosch PowerMore range extending battery on a Marin Rift Zone EL XR.

EXTRAS

Bosch’s PowerMore range extending battery can be added to the downtube of Rift Zone EL models, giving the riders an additional 250Wh of power in a form factor not much larger than a water bottle. Available at extra cost from authorized Bosch ebike retailer.

Suspension Setup

REAR SHOCK SETUP

Recommended Sag=30%/19.5mm

Step 1: Set correct pressure in rear shock.

Step 2: Sit on the bike and cycle the suspension (*with correct riding gear).

Step 3: Reset O-ring and sit on the bike, DO NOT BOUNCE, carefully step off.

Step 4: Measure sag (from o-ring to seal of shock), If it does not match the bike’s recommended sag in millimeters repeat process.

Step 5: Adjust rebound setting to ensure proper control.

FORK SETUP

Marin recommends that all bikes front and rear suspension feel balanced

Step 1: After rear sag is set follow the recommended pressure from the fork manufacturer.

Step 2: Bounce evenly up and down on the bike, cycling the suspension up and down to make sure both front and rear suspension feel balanced, if the front does not match the rear add or release pressure.

Step 3: Once the bike feels balanced adjust the rebound damping to ensure proper control.

Rider weight and shock setup
LBSKGPSI
12054130
13059145
14064155
15068170
16073185
17077200
18082215
19086230
20091245
21095260
220100275
230104290
240109300
250113310
260118315
270122319
