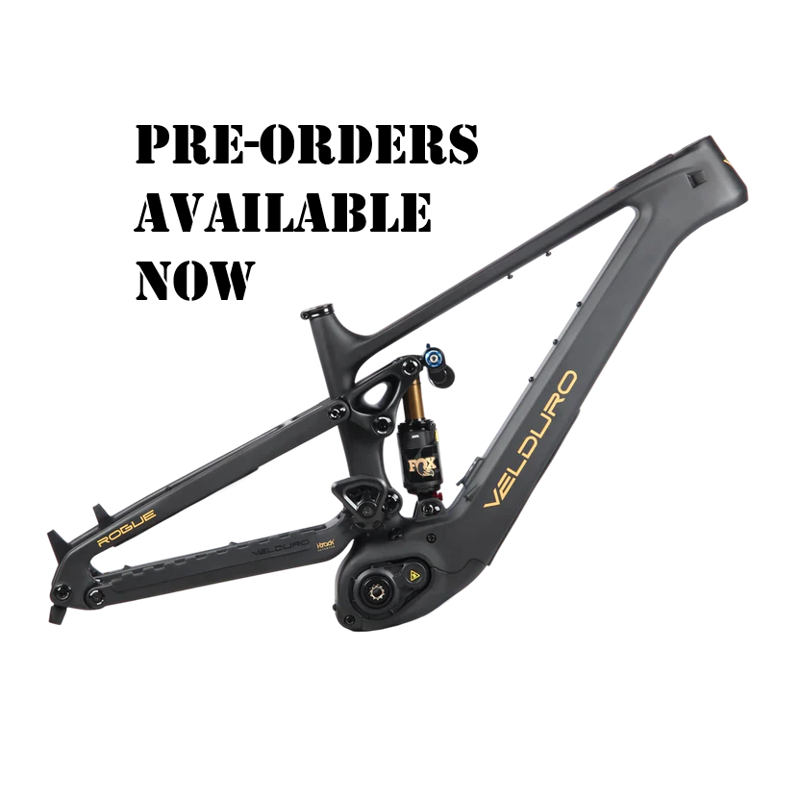

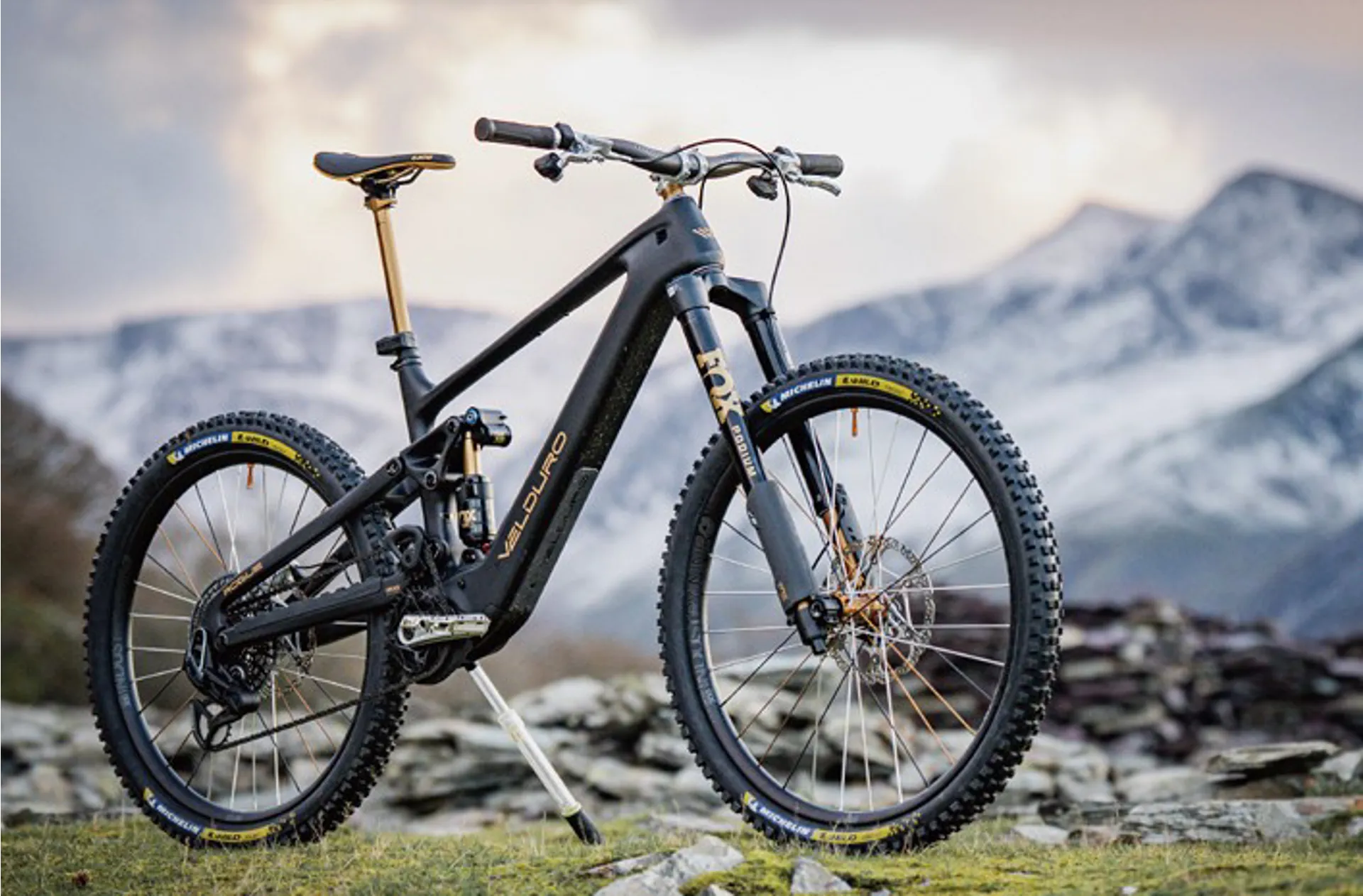

Velduro Rogue Frame Only

Brand:Velduro Uk

Code:RogueFR

Build your dream Avinox powered EMTB with Velduro. The Rogue's modular frame has been designed to adapt to your needs and riding style with the easiest of adjustments. Adjust the travel, tweak the geo or switch wheel sizes (29er or mixed) and customise your ride to create your Ultimate Dream Build. In Standard Mode (170mm fork / 165mm rear), it's a trail-taming weapon. Switch to All-Mountain Mode (160mm front/rear) for flowy, high speed precision, or unleash Full Enduro Mode (180mm front / 170mm rear) to conquer anything you can throw at it.

At its core is the customisable DJI Avinox drive system, delivering smooth, intuitive power through an integrated 800Wh battery, giving you the freedom to ride harder and further than ever.

AVINOX DRIVE SYSTEM

Avinox Drive System redefines e-biking with it's compact power and smart tech. The M1 Drive Unit (2.52 kg) delivers 105nm torque, aided by a planetary gearset and noise-reducing polymers for quiet, efficient performance. Four riding modes (Auto, Eco, Trail, Turbo) adapt to terrain, while Boost mode unleashes 120nm torque and 1000W power for 60 seconds.

Two IP56-rated batteries (600/800 Wh) offer fast charging (800Wh: 0-75% in 1.5 hours) and a battery health system for longevity (80% capacity after 500 cycles). A 2-inch OLED touch screen (800 nits, waterproof) displays ride data, customizable via the Avinox app, which also enables Bluetooth unlocking and theft alerts.

Dual wireless controllers simplify mode changes, while an IMU sensor enables walk-assist for steep pushes. Certified by TOV SÜD/Rheinland, the system is backed by Avinox's global service network.

Combining Avinox's engineering with e-bike agility, Avinox balances power, portability, and smart connectivity for seamless rides.

DEFY THE LIMITS

Conquer more with less

The Rogue E-Enduro was designed to tackle New Zealand's gnarliest trails. This bike allows you to climb the steepest tracks and descend with speed and control. Using the patented i-Track suspension system the Rogue offers power, control and style.

ONE BIKE FOR ALL

CONQUER MORE WITH LESS

The Rogue isn't confined to a single identity. In Standard Mode (170mm fork / 165mm rear), it's a trail-taming beast. Switch to All-Mountain Mode (160mm front/rear) for flowy precision, or unleash Enduro Mode (180mm front / 170mm rear) to dominate brake-burning descents.

Avinox's 120 Nm drive binds these personas into one unstoppable force. Its torque isn't just raw power— it's intelligent aggression, syncing with suspension kinematics to float over roots or claw up 40% grades. No more "uphill vs. downhill" dilemmas.

The Rogue's modular frame can adapt to your needs and riding style. Swap the travel, tweak geometry or switch wheel sizes and customize your ride to create your Dream Machine.

Lower Kick-back + optimised anti-squat

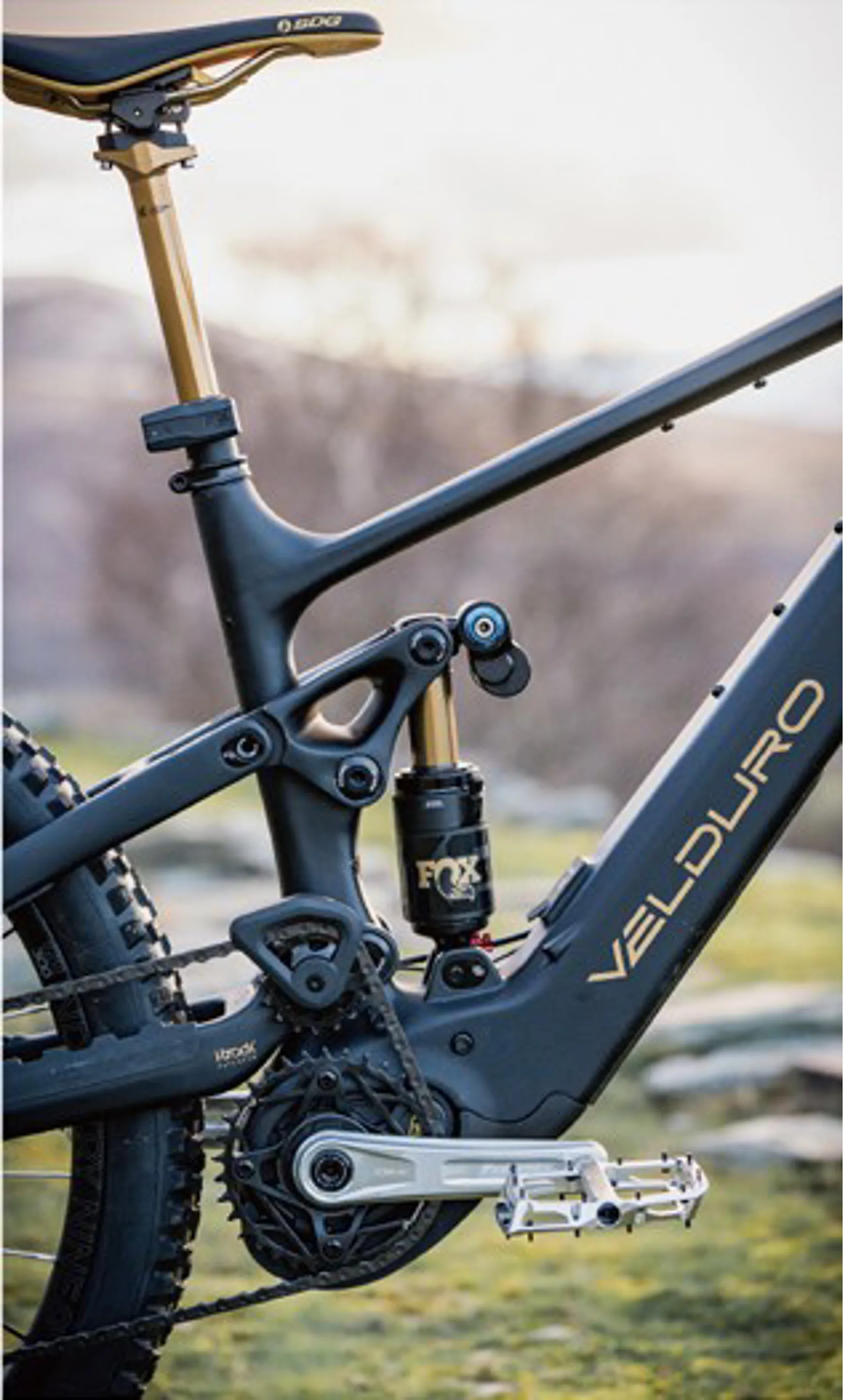

The i-track suspension has multiple benefits. By repositioning the rear axle path, Rogue's rear wheel tracks terrain, creating stability on chaotic descents. The idler pulley silences chain slap and eliminates pedal kickback and it's ingenious patented postition on the chainstay enables precision optimisation of antisquat kinematics.



Shock Flip Chip

Two Bikes in One

Flick the AM/Enduro chip at the shock mount, and Rogue morphs. "AM" mode prioritizes pedaling efficiency; flip to "Enduro" to unlock 5mm extra travel (172mm max) and slackened head angles for steep, rowdy lines.



Mullet or 29er

Switch between 27.5" agility and 29" roll-over dominance in minutes. Our GeoLock module keeps head tube angle, chainstay length and BB height identical across wheel sizes with no compromises. Tested in Rotorua and Queenstown New Zealand, the Rogue was built to conquer anything in its path.

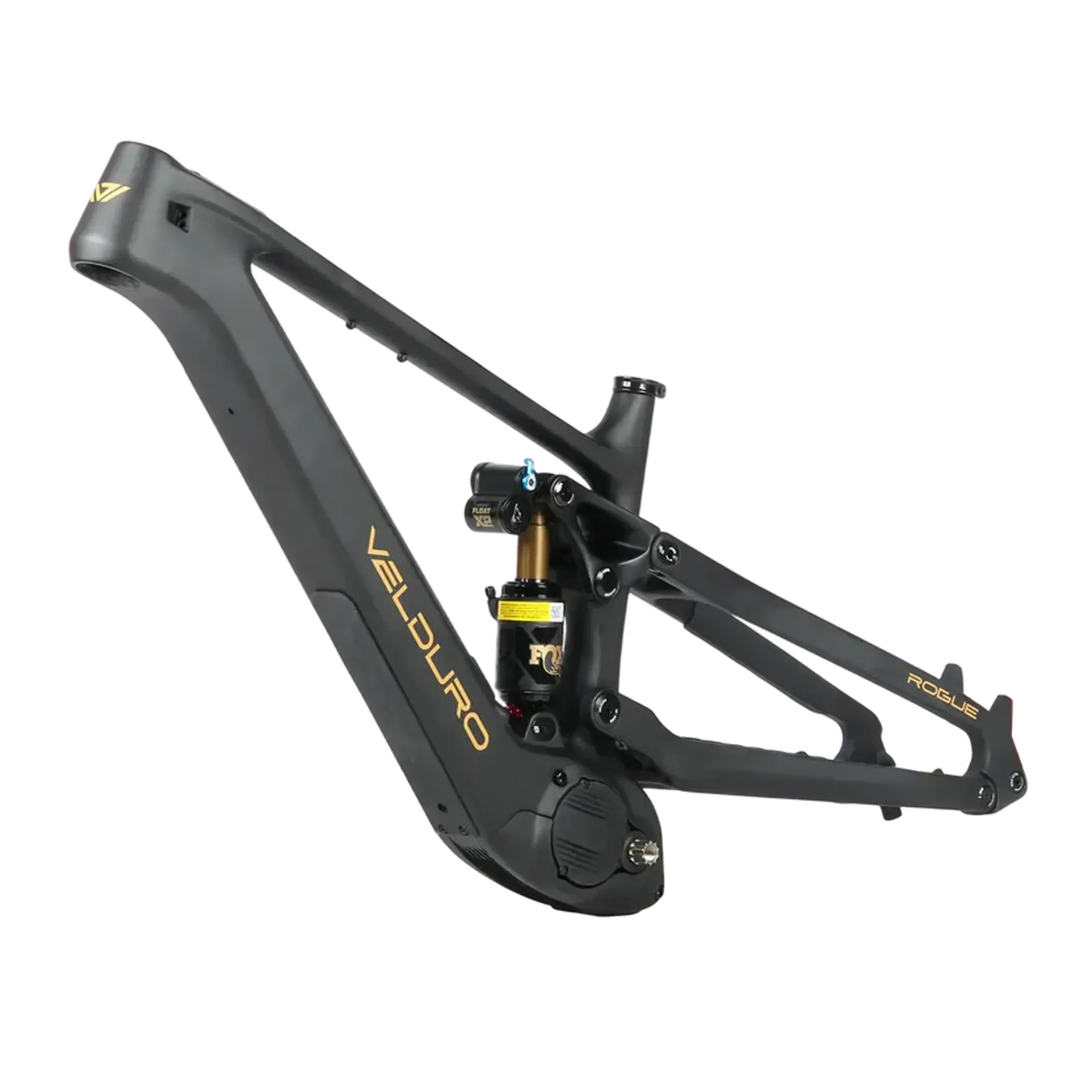

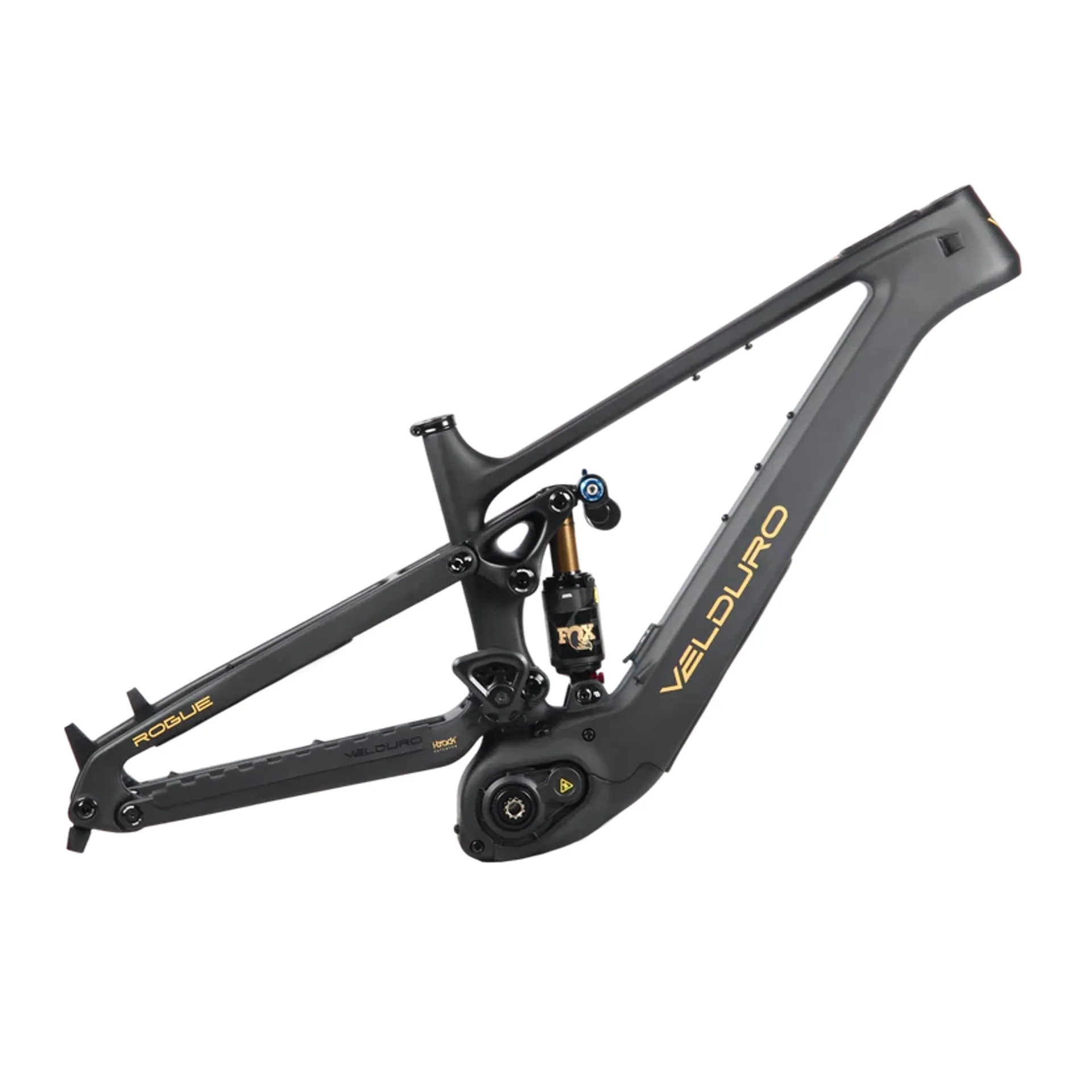

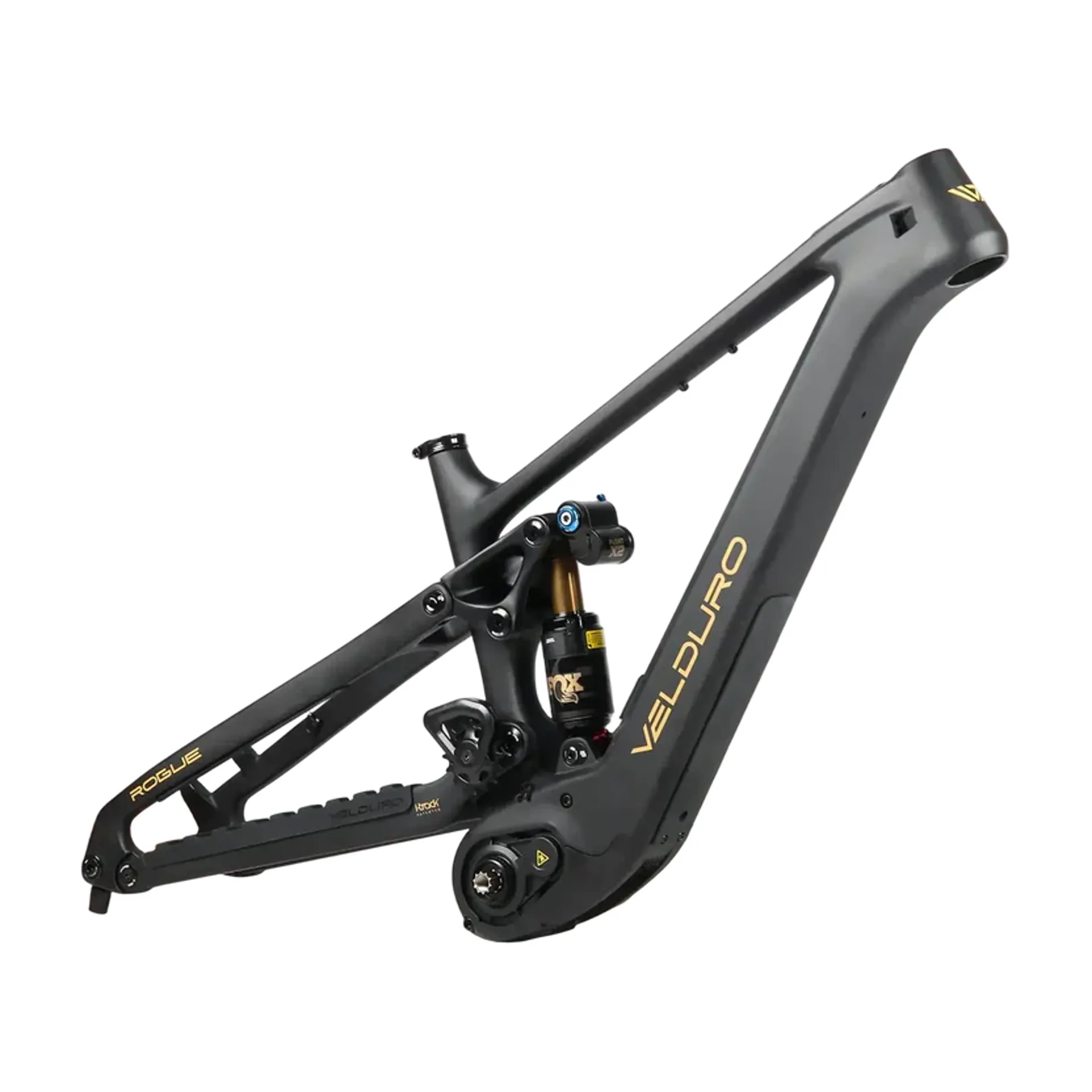

FRAME

Carbon fiber frame,weights only 3.5KG 165mm rear travel, up to 172mm

Over-size bearings, extreme durability

Straight seat tube, extra-long seatpost insert depth enabling long-reach dropper

16T i-track CNC upper idler

Shock flip chip

29/mullet flip chip

SUSPENSION

Mid-pivot for a rearward axle path

Excellent shock compression ratio curve

Anti-rise maintained at 90-110%

Standard/progressive flip chip

Fork suitable from 160mm to 180mm

Rear travel from 160mm to 172mm

POWER

Avinox Ml drive system,weights 2.52KG

36V 250W 105Nm, 1000W peak power

120Nm in Boost mode

Customizable parameters

RANGE

Light-weight high capacity battery 600Wh/800Wh battery for option

Max range over 100km with 800Wh

GaN 3x fast charging, 0-75% in 1.5hours

INTELLIGENT

Multiple Assist mode,Customizable riding Intelligent walk assist

Smart touchscreen, multi-function display Customizable& simple interface

Smartphone connectivity,enhanced safety

Health management system


FRAME ONLY - WHAT'S INCLUDED

Rogue carbon frame

16T CNC idler with idler guide

FSA No.57 ZS44/56 headset

Rogue motor cover

Rogue charge port cover

12X148 rear thru axle

UDH Hanger

Bottle cage screws

Seatpost clamp

Cable lugs

Avinox Ml motor 250W 105Nm

Avinox chainwheel spider with lock

Avinox isis crank 155mm

Avinox battery 36V 800Wh

Avinox DPIOO 2inch smart screen

Avinox BCIOO bluetooth remoter X2

Avinox speed sensor

Avinox 4A 168Wh charger

Avinox power cables

Velduro steel chainwheel, 104BCD, 34T
