The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29 wheels in a trail capable package
The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29 wheels in a trail capable package
Marin

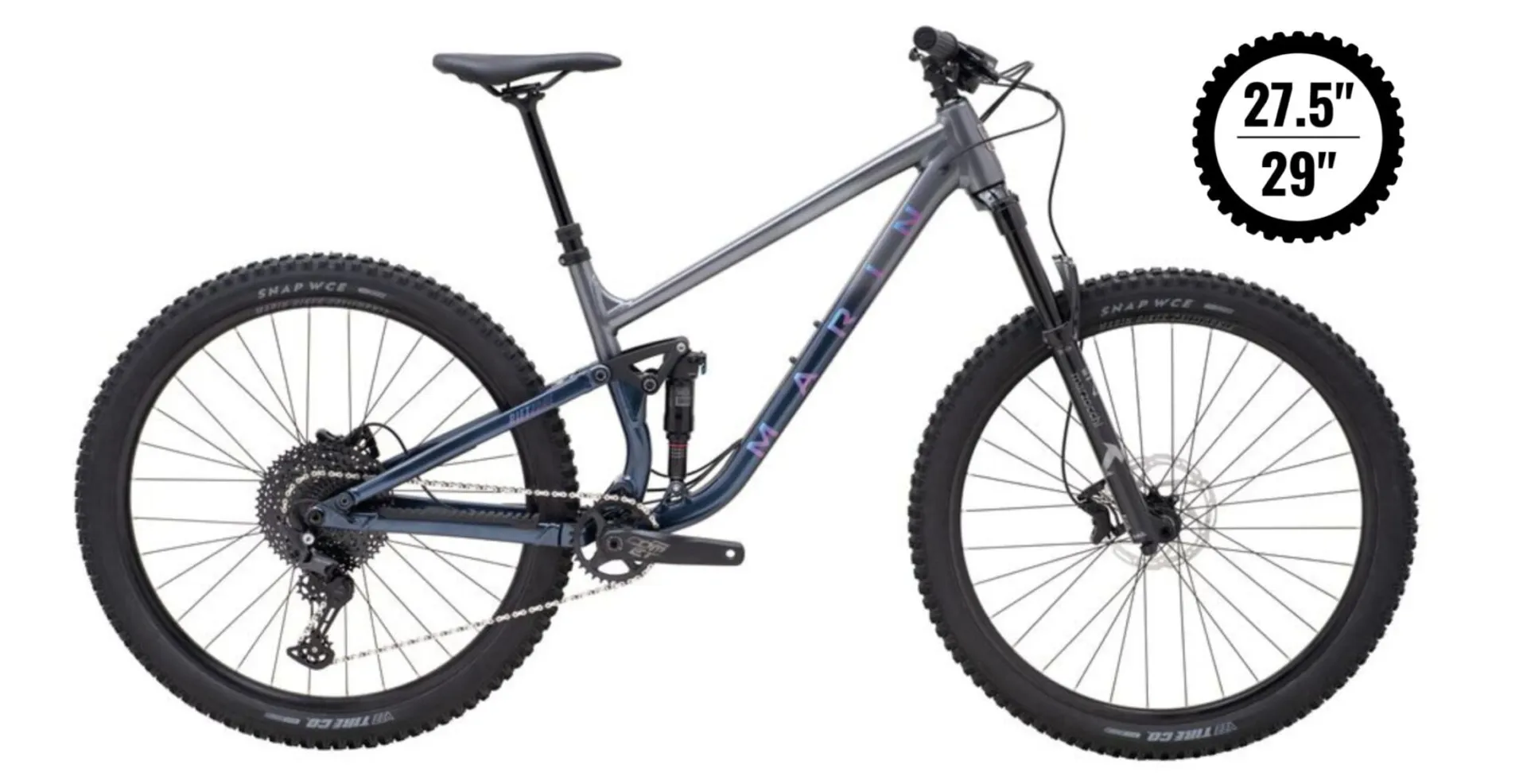

Rift Zone 2 27. 5 GREY/BLUE

£1,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS

----

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Several types of goods are exempt from being returned. Perishable goods such as food, flowers, newspapers or magazines cannot be returned. We also do not accept products that are intimate or sanitary goods, hazardous materials, or flammable liquids or gases.

Additional non-returnable items:
Gift cards
Downloadable software products
Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)

Book with obvious signs of use
CD, DVD, VHS tape, software, video game, cassette tape, or vinyl record that has been opened.
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery
Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at info@cycleaddicts.co.uk.

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at info@cycleaddicts.co.uk and send your item to: 4, West Mill, spotland bridge mill, Mellor St, Rochdale OL11 5BU, England.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: 4, West Mill, spotland bridge mill, Mellor St, Rochdale OL11 5BU, England.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

Rift Zone 2 27. 5 GREY/BLUE

Season:2025

Brand:Marin

Code:7390780GRYBLU

The rift zone represents the most modern 29 short travel trail bike possible featuring 125mm of multitrac suspension and progressive geometry that takes full advantage of decades of trail riding experience to create best-in-class handling, both in and out of the saddle. The rift zone is available with a carbon fiber or aluminum front triangle and is an ideal bike for mixing it up between long trail days in the saddle and fast weeknight group rides

Specifications

  • Frame

    Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

  • Front Suspension

    Marzocchi Bomber Z2, Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset

  • Rear Suspension

    RockShox Deluxe Select RT, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x55mm, M8x25mm Hardware

  • Rims

    Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

  • Hub, Rear

    Shimano FH-TC500, 148x12mm, Disc, HG Freehub Body

  • Hub, Front

    Shimano HF-TC500, 110x15mm, Centerlock, 32H

  • Spokes

    14g Black Stainless Steel

  • Tires

    Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless compatible

  • Derailleur, Rear

    Shimano Deore, 12-Speed, SGS

  • Derailleur, Front

    -

  • Shift Lever

    Shimano Deore, 12-Speed, SL-M6100-R

  • Crankset

    FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

  • Bottom Bracket

    External Sealed Cartridge Bearing

  • Chain

    KMC X-12 Silver and Black

  • Cassette

    SunRace, 12-Speed, 11-51T

  • Brake, Front

    Tektro HD-M535 Hydraulic Disc, 180mm Rotor

  • Brake, Rear

    Tektro HD-M535 Hydraulic Disc, 180mm Rotor

  • Brake Levers

    Tektro HD-M535 Hydraulic

  • Handlebar

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • Stem

    Marin 3D Forged Alloy, 35mm

  • Grips

    Marin Grizzly Lock On

  • Headset

    FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • Seatpost

    X-Fusion Manic, 1x Composite Remote, Size S 150mm Travel, Size M-XL 170mm Travel, 30.9mm

  • Saddle

    Marin Speed Concept

  • Pedals

    -

  • Extras

    Bolt-On Thru-Axle

Specifications, pricing, and availability are subject to change without notice.

Geometry

Rift Zone 2 geometry diagram
SM (27.5)M (29)LXL
Stack600.7605.2628.2637.3641.8
Reach430450460485515
Headtube Angle65.5°65.5°65.5°65.5°65.5°
Headtube Length120125115125130
Seattube Angle77°77°77°77°77°
Seattube Length390400400425430
Toptube Effective568.7589.7605632.1663.2
BB Height339339343343343
BB Drop3535353535
Chainstay430430430430430
Wheelbase1164.81186.91205.11234.41266.3
Standover Height677.8687.8691.2701.7700.5
Fork Offset4444444444
Seatpost Diameter30.930.930.930.930.9
Handlebar Width780780780780780
Stem Length3535353535
Crank Length170170170170170

All lengths in millimeters

Technology

Rift Zone XR AXS frame detail.

SERIES 3 ALUMINUMIM FRAME

Rift Zone alloy models feature Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing with new braze-in ports, giving the rider a high feature and high-performing upgrade-worthy platform.

Rift Zone Alloy MultiTrac suspension detail.

MULTITRAC SUSPENSION TECHNOLOGY

MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks. 130mm rear travel on all Rift Zone models.

Marin Rift Zone headtube detail.

MODERN TRAIL GEOMETRY

Trail geometry with 430mm chainstays, low bottom bracket, long top tube, and a slack 65.5° head angle make for a playful yet confidence-inspiring bike.

Rift Zone alloy lower cable/hose port.

INTERNAL ROUTING

Rift Zone Alloy models sport full internal cable/hose routing in the front triangle, and all-new brazed-in cable ports, providing a clean and rattle free cable set up.

Rift Zone SRAM UDH detail.

CHAINSTAY/SEATSTAY PROTECTORS & UDH ON ALLOY MODELS

Rift Zone models have enhanced chainstay and seat stay protectors for a quiet ride, and utilize SRAM's Universal Derailleur Hanger (UDH) to help future-proof the frame as well as allow for T-type drivetrains.

Marin Rift Zone chainstay/seatstay detail.

ENHANCED CHAINSTAY/SEATSTAY PROTECTION

Rift Zone models have prominent chainstay and seat stay protectors for a quiet ride that also protects the paint finish.

Suspension Setup

REAR SHOCK SET UP

Recommended Sag=30%/15mm

Step 1: Set correct pressure in rear shock.

Step 2: Sit on the bike and cycle the suspension (*with correct riding gear).

Step 3: Reset O-ring and sit on the bike, DO NOT BOUNCE, carefully step off.

Step 4: Measure sag (from o-ring to seal of shock), If it does not match the bike’s recommended sag in millimeters repeat process.

Step 5: Adjust rebound setting to ensure proper control.

FORK SET UP

Marin recommends that all bikes front and rear suspension feel balanced

Step 1: After rear sag is set follow the recommended pressure from the fork manufacture.

Step 2: Bounce evenly up and down on the bike, cycling the suspension up and down to make sure both front and rear suspension feel balanced, if the front does not match the rear add or release pressure.

Step 3: Once the bike feels balanced adjust the rebound damping to ensure proper control.

RockShox Deluxe Select RT

Rider weight and shock setup
LBSKGPSI
12054103
13059118
14064133
15068150
16073167.5
17077185
18082195
19086205
20091213
21095221
220100229
230104234
240109239
250113244
260118249
270122254
